JH37-530
Voltage：3V/6V/9V/12V/24V
Speed：1-1000RPM
Scope of application: household equipment, banknote counters, office equipment,Automatic curtains, Antique motor, packaging machines, power tools, etc ...
Hotline： +86 21 57533277
Product Video

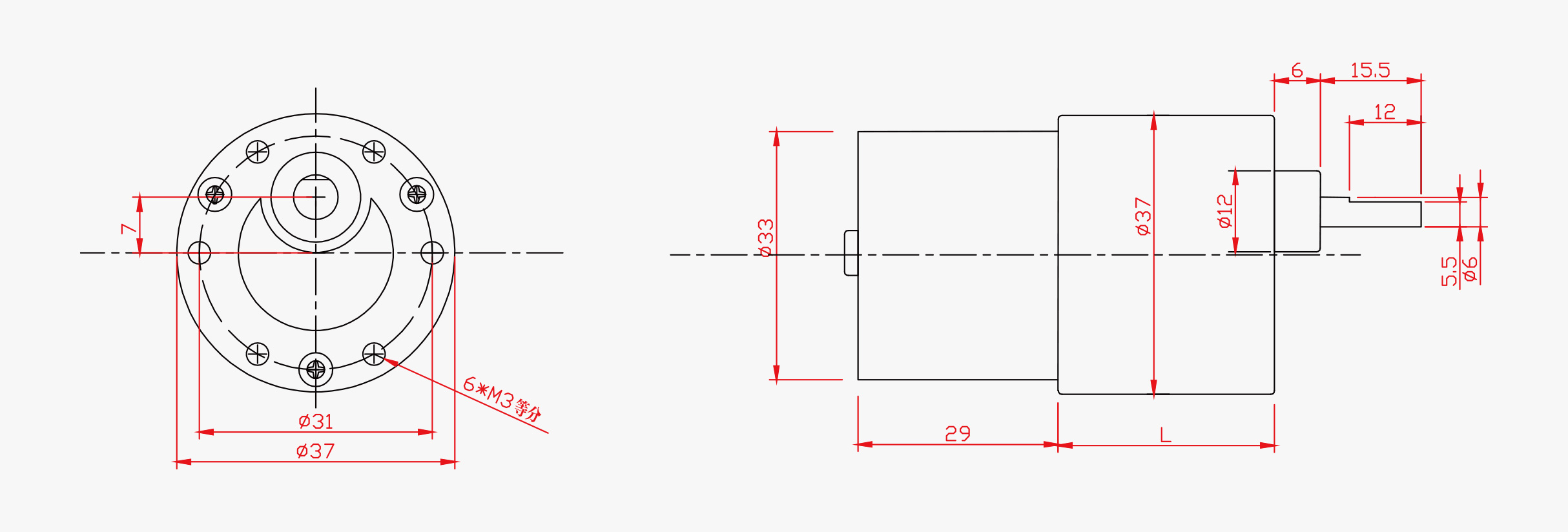

Dimensions
Performance parameter
| Model | RS-530/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.026 |
| 15.00 | g-cm | 5967 | 0.03 |
| 54.60 | g-cm | 5000 | 0.17 |
| 114.76 | g-cm | 3905 | 0.33 |
| 164.60 | g-cm | 2998 | 0.46 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 2-3 | 1:5/1:10/1:20/1:30 | 3-10kgf.cm | 81%-70% |
| 4 | 1:53/1:60/1:90/1:120 | 30kgf.cm | 75% |
| 5 | 1:107/1:160/1:180/1:270 | 40kgf.cm | 65% |
| 6 | 1:213/1:480/1:540/1:810 | 50kgf.cm | 60% |

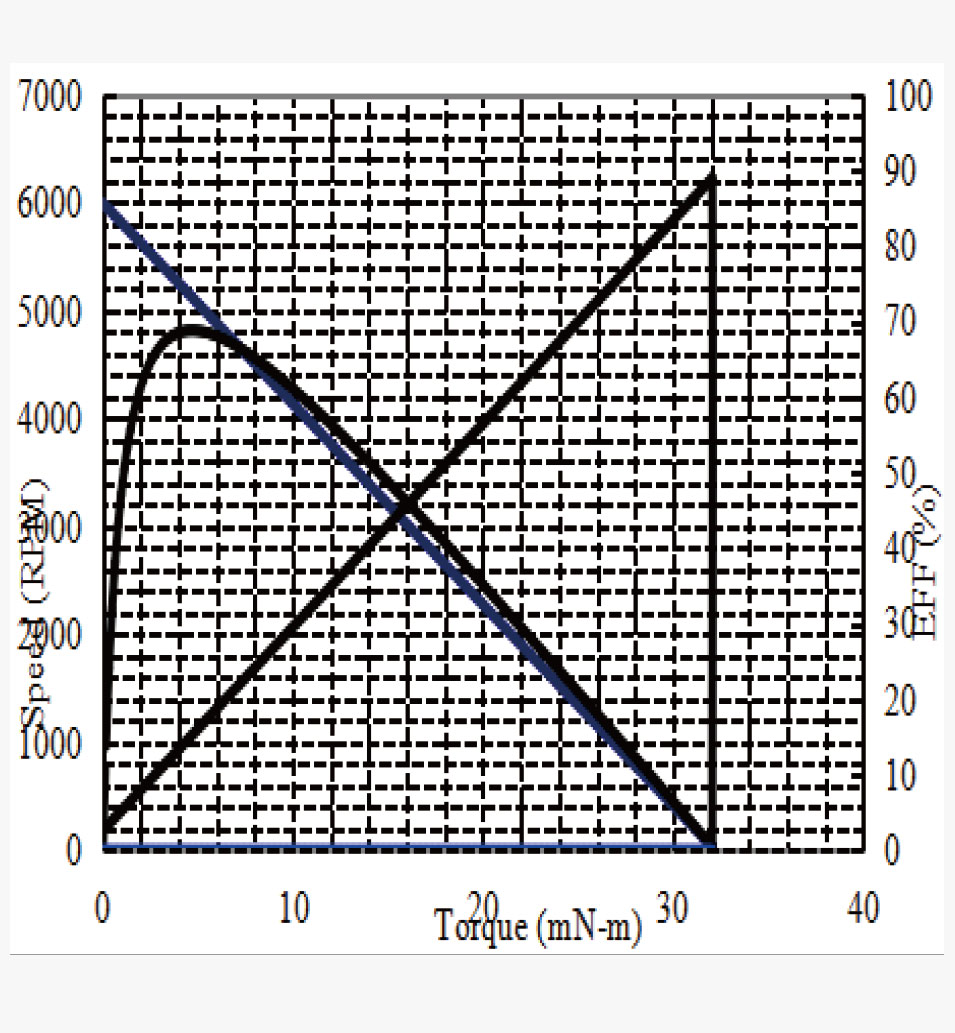

Performance graph
