JH42-775
Voltage：6V/12V/24V/36V/48V
Speed：1-1000RPM
Scope of application: household equipment, medical equipment,office equipment, Ovens, washing machines, game machines, power tools, etc ...
Hotline： +86 21 57533277
Product Video

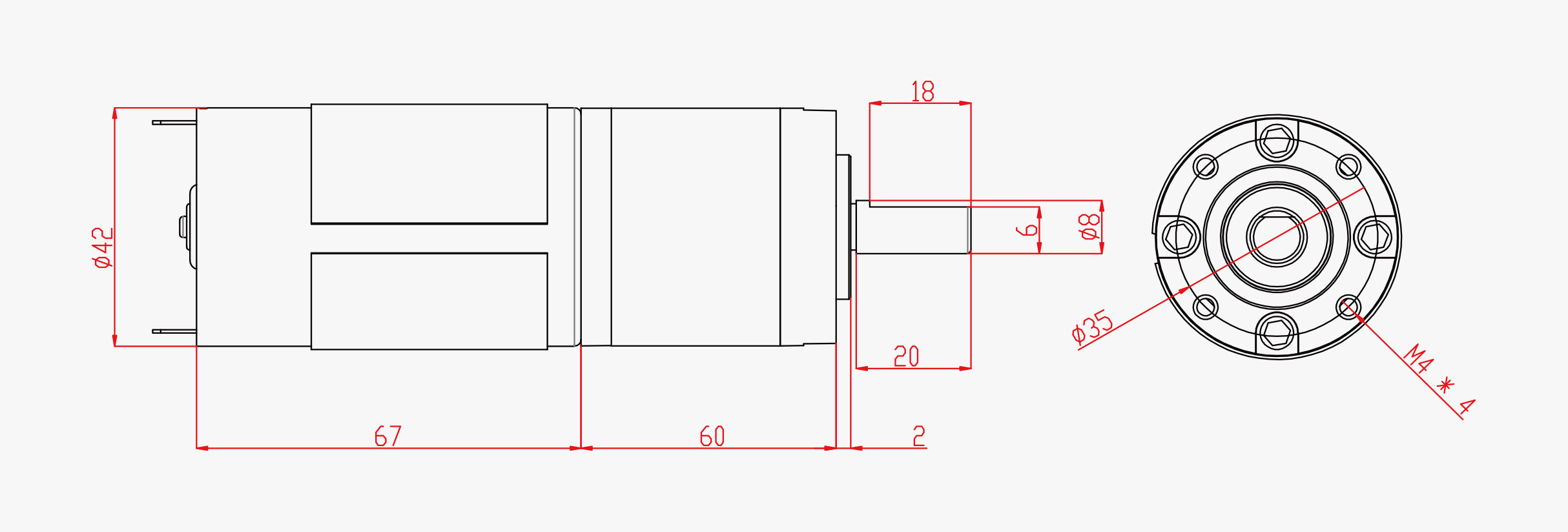

Dimensions
Performance parameter
| Model | RS-775/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.25 |
| 65860 | g-cm | 5200 | 1.75 |
| 58600 | g-cm | 4000 | 4.32 |
| 25768 | g-cm | 2980 | 5.95 |
| 51536 | g-cm | 0 | 11.64 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 1 | 1:3.6/1:4.25/1:5.3 | 30kgf.cm | 90% |
| 2 | 1:13/1:15.3/1:19 | 60kgf.cm | 80% |
| 3 | 1:46.6/1:65/1:81/1:101 | 80kgf.cm | 75% |
| 4 | 1:168/1:276/1:326/1:536 | 100kgf.cm | 65% |
| 5 | 1:604/1:995/1:1174 | 120kgf.cm | 55% |

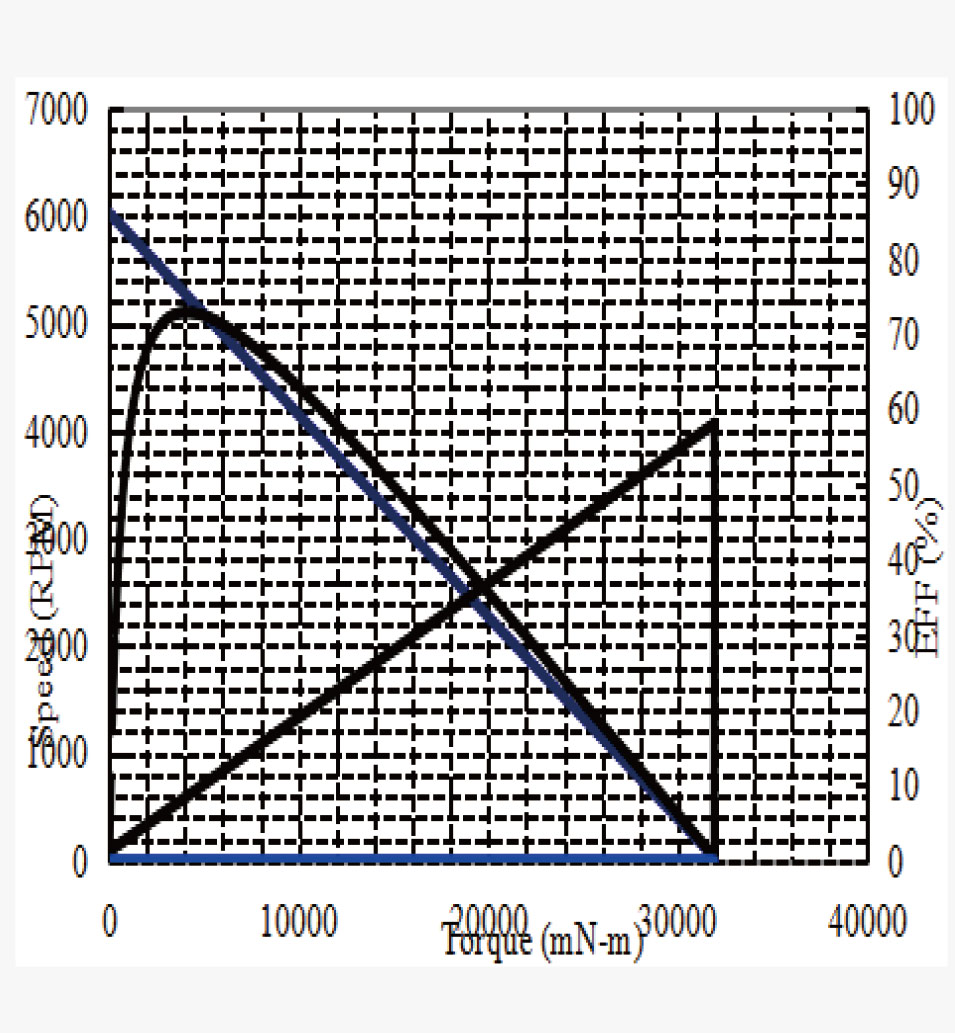

Performance graph
