JH50-530
Voltage：3V/6V/9V/12V/24V/36V
Speed：1-1000RPM
Scope of application: household equipment, medical equipment,office equipment, automatic doors,Electronic advertising ATM banking equipment, telescopes, power tools, etc ...
Hotline： +86 21 57533277
Product Video

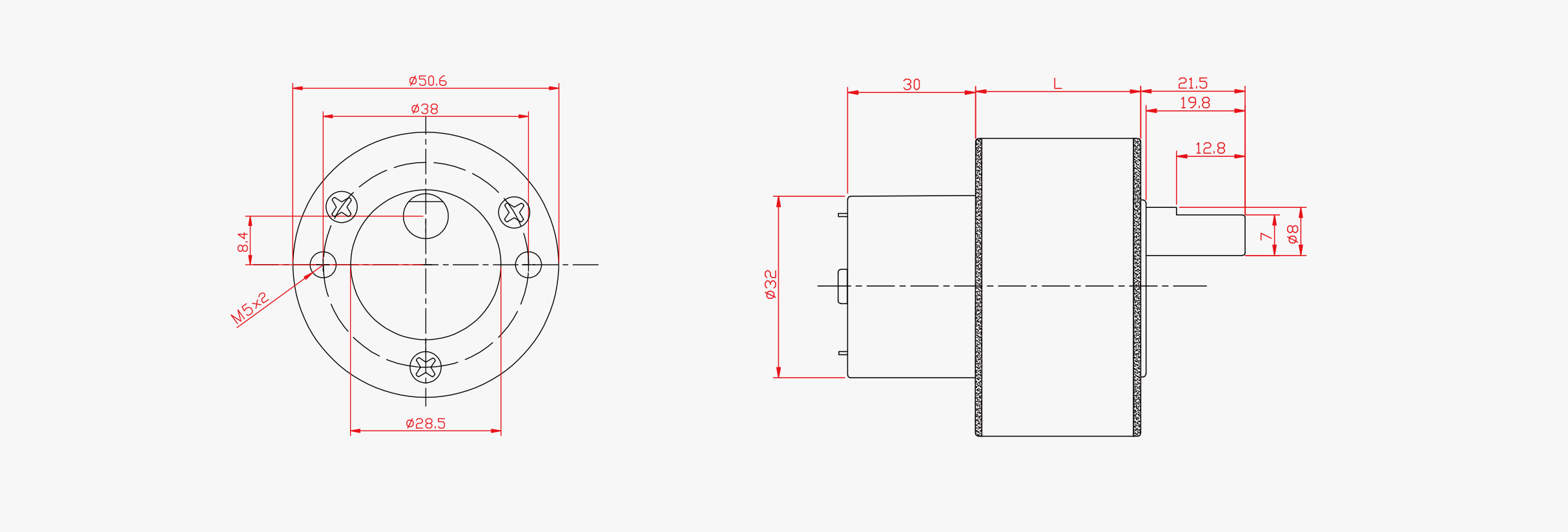

Dimensions
Performance parameter
| Model | RS-530/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.026 |
| 15.00 | g-cm | 5967 | 0.03 |
| 54.60 | g-cm | 5000 | 0.17 |
| 114.76 | g-cm | 3905 | 0.33 |
| 164.60 | g-cm | 2998 | 0.46 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 1 | 1:8.8 | 10kgf.cm | 90% |
| 2 | 1:18.5/1:35 | 15kgf.cm | 81% |
| 3 | 1:74/1:141 | 20kgf.cm | 75% |
| 4 | 1:296/1:565 | 25kgf.cm | 65% |
| 5 | 1:1184/1:2261 | 30kgf.cm | 55% |

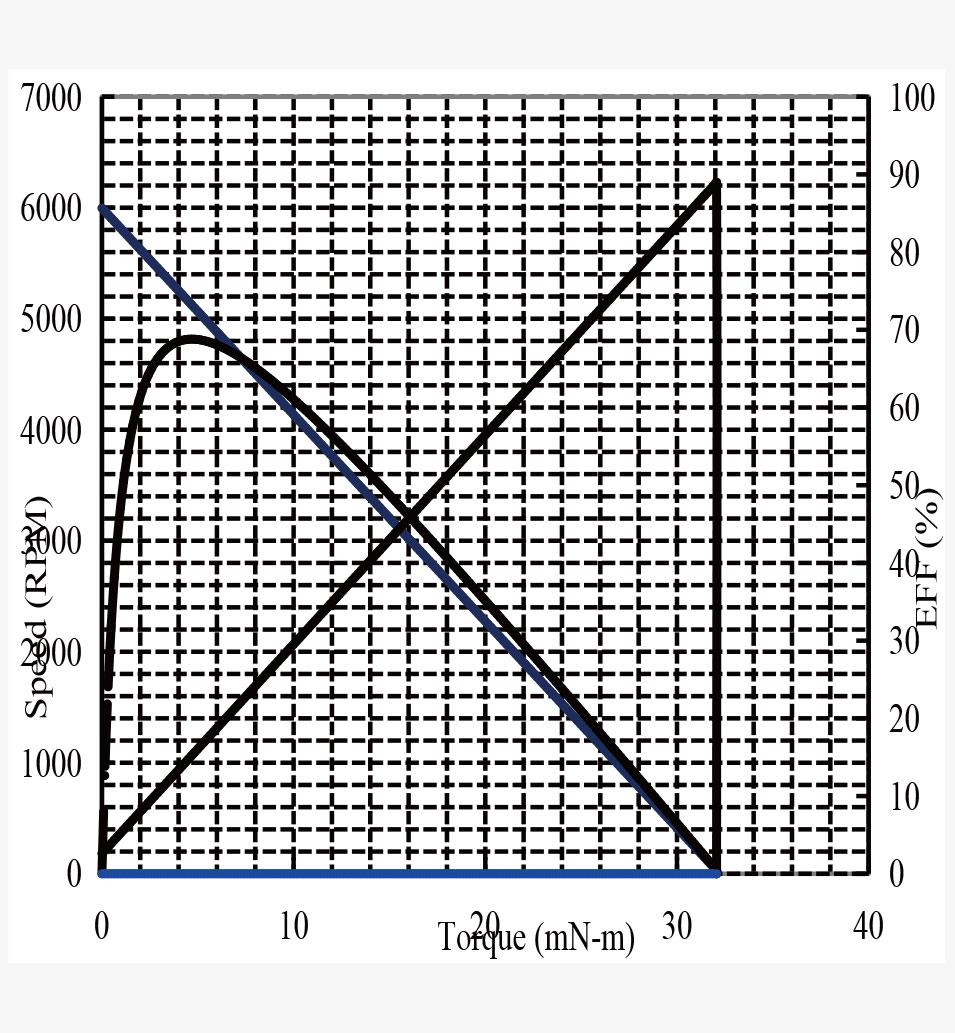

Performance graph
