JH50-555
Voltage：6V/12V/24V/36V/48V
Speed：1-1000RPM
Scope of application: household equipment, medical equipment, office equipment, vending machines,Mobile billboards, vacuum cleaners, electric sewing machines, electric tools, etc...
Hotline： +86 21 57533277
Product Video

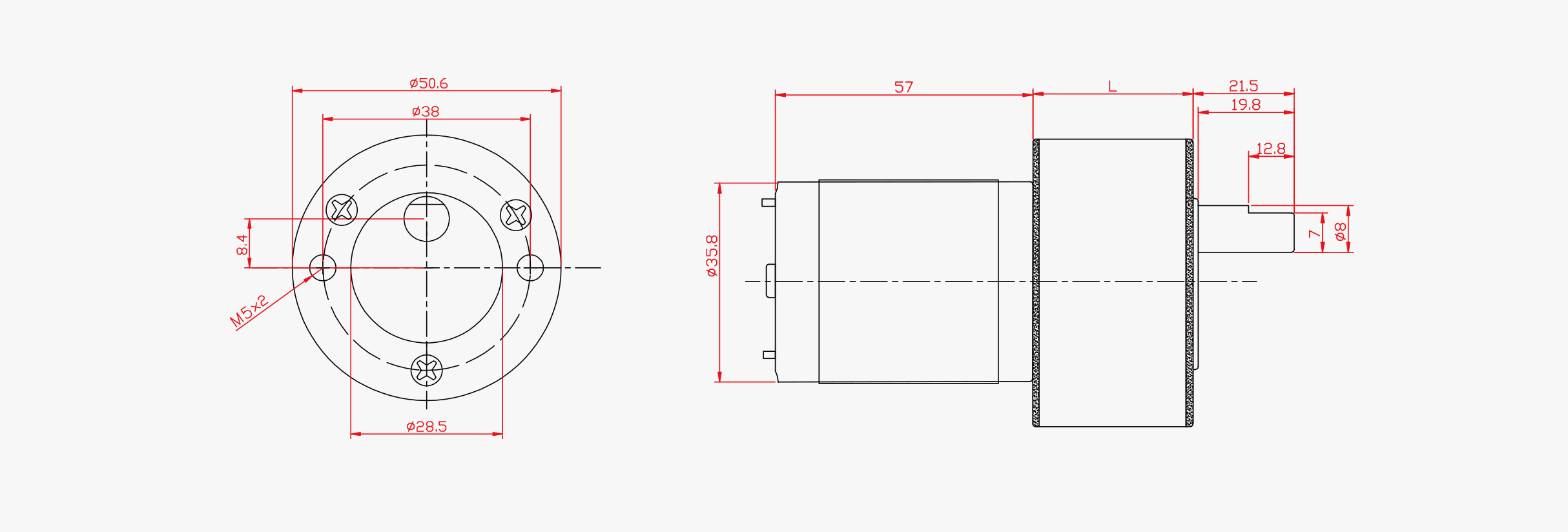

Dimensions
Performance parameter
| Model | RS-310/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.08 |
| 23450 | g-cm | 5476 | 0.65 |
| 11052 | g-cm | 4028 | 0.89 |
| 10708 | g-cm | 3075 | 2.68 |
| 21416 | g-cm | 0 | 5.28 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 1 | 1:8.8 | 10kgf.cm | 90% |
| 2 | 1:18.5/1:35 | 15kgf.cm | 81% |
| 3 | 1:74/1:141 | 20kgf.cm | 75% |
| 4 | 1:296/1:565 | 25kgf.cm | 65% |
| 5 | 1:1184/1:2261 | 30kgf.cm | 55% |

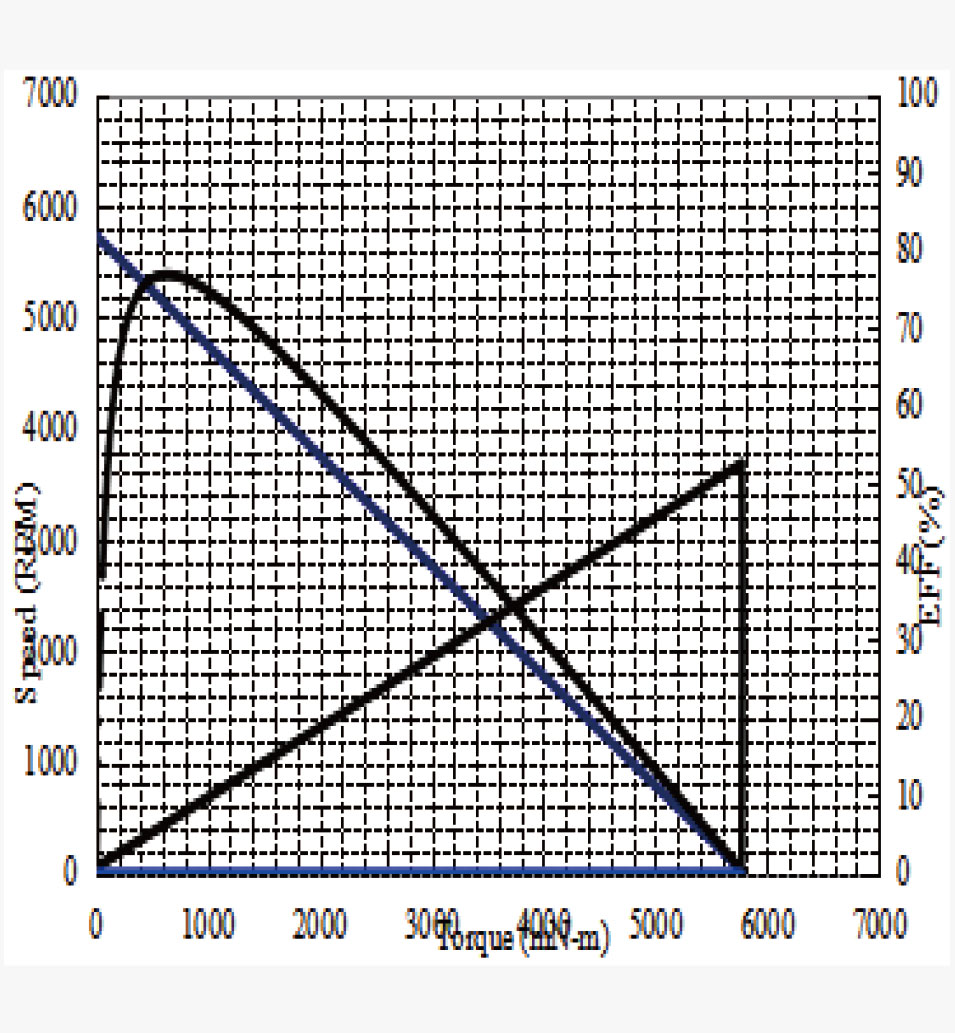

Performance graph
