JH32-3157
Voltage：1.5V/3V/6V/9V/12V/24V
Speed：1-800RPM
Scope of application: household equipment, electronic locks, office equipment, robots,Tissue machines, elevators, card readers,power tools, etc ...
Hotline： +86 21 57533277
Product Video

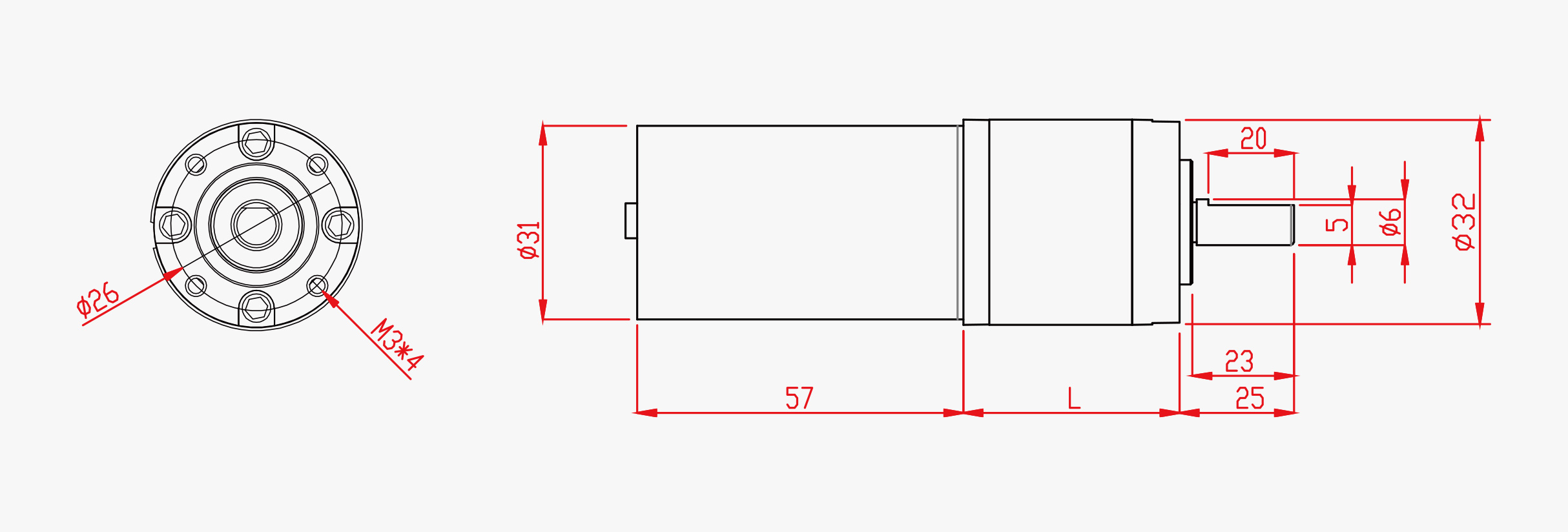

Dimensions
Performance parameter
| Model | RS-3157/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.026 |
| 15.00 | g-cm | 5967 | 0.03 |
| 54.60 | g-cm | 5000 | 0.17 |
| 114.76 | g-cm | 3905 | 0.329 |
| 164.60 | g-cm | 2998 | 0.46 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 1 | 1:3.7/1:5.18 | 20kgf.cm | 90% |
| 2 | 1:13.6/1.:19/1:27 | 40kgf.cm | 81% |
| 3 | 1:51/1:71/1:99/1:139 | 80kgf.cm | 75% |
| 4 | 1:188/1:262/1:367/1:514/1:720 | 120kgf.cm | 65% |

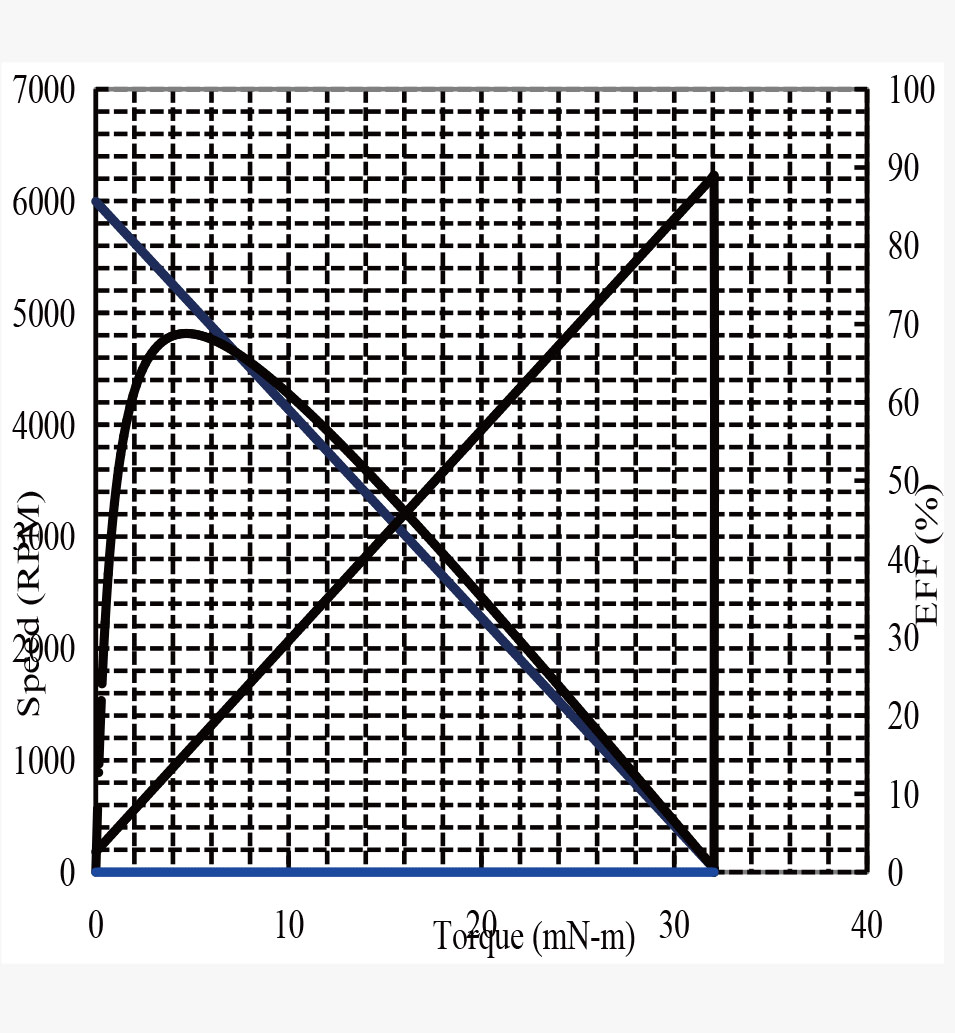

Performance graph
