JH-WG3246-370
Voltage：3V/6V/9V/12V/24V
Speed：1-800RPM
Scope of application: household equipment, electronic locks, office equipment, robots,Tissue machines, elevators, card readers,power tools, etc ...
Hotline： +86 21 57533277
Product Video

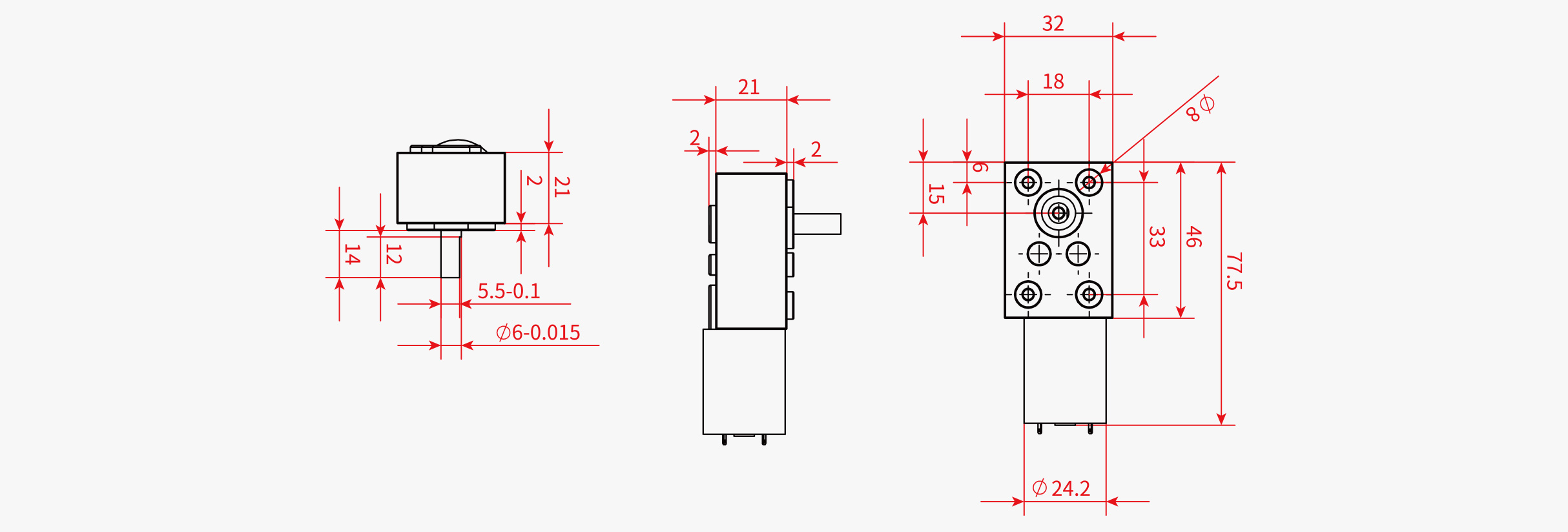

Dimensions
Performance parameter
| Model | RS-370/24V6000 | Volt:24V | Direction :CCW |
|---|---|---|---|
| Torque | Speed(y) | Current(x) | |
| 0 | g-cm | 6000 | 0.012 |
| 5.30 | g-cm | 5853 | 0.02 |
| 26.58 | g-cm | 5112 | 0.792 |
| 28.00 | g-cm | 5000 | 0.85 |
| 85.00 | g-cm | 3014 | 0.23 |
Gearbox Parameters
| Number of stages | Reduction ratio | Running torque | Gear efficiency |
|---|---|---|---|
| 3 |
1:66/1:131
1:175/1:272
|
30kgf.cm | 75% |
| 4 |
1:476/1:578
1:682/1:828
|
40kgf.cm | 65% |
| 5 |
1:952/1:1364
1:1656/1:1686
|
50kgf.cm | 60% |

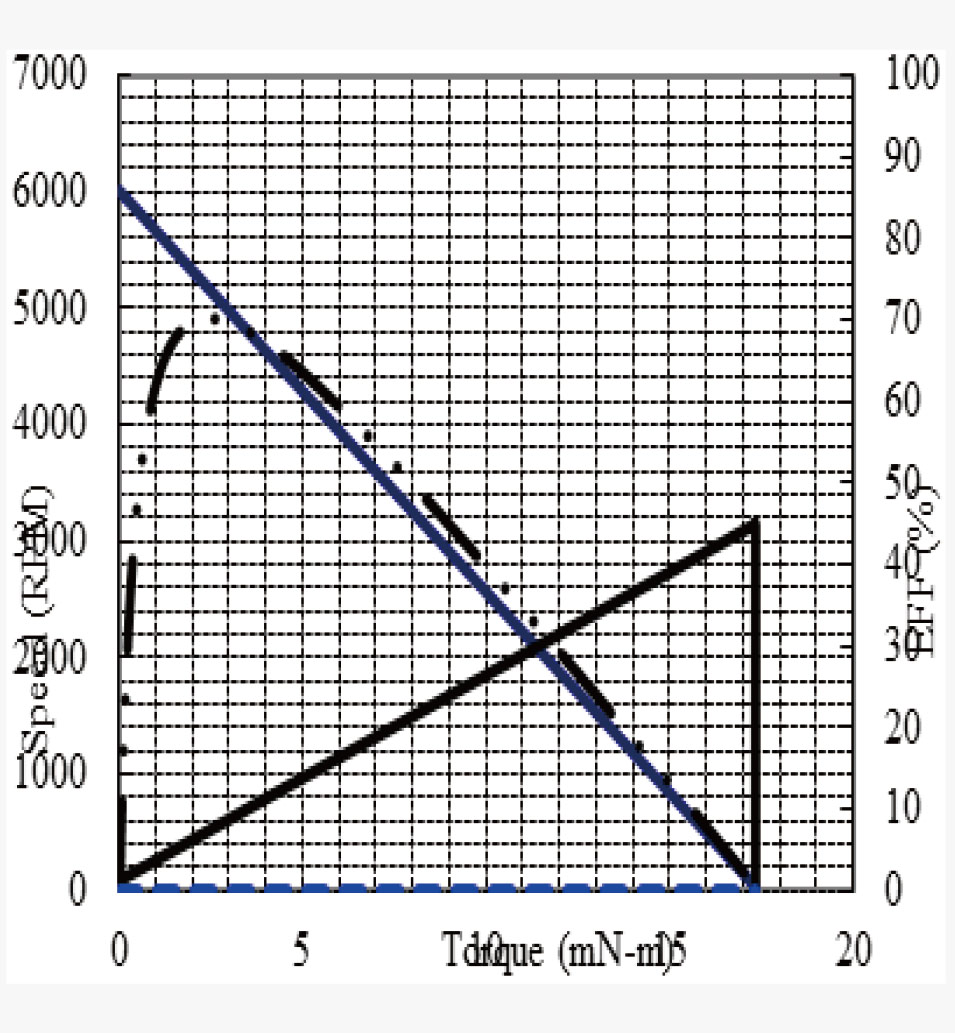

Performance graph
